Apkocalypse - l3ak CTF Writeup

Challenge Info

Field	Details
CTF	l3ak CTF
Challenge	Apkocalypse
Category	Android / Reverse Engineering

Description

Just grab the flag from this simple file storage app.

Solution

We can start by installing and opening the APK in our emulator

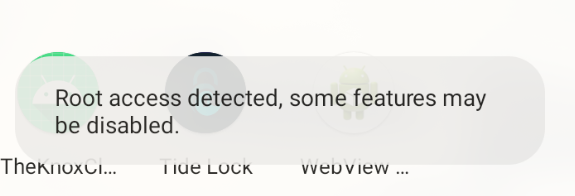

We cannot enter the app, it crashes immediately and a toast is displayed Root access detected, some features may be disabled. Now, we can proceed to inspect it in Jadx

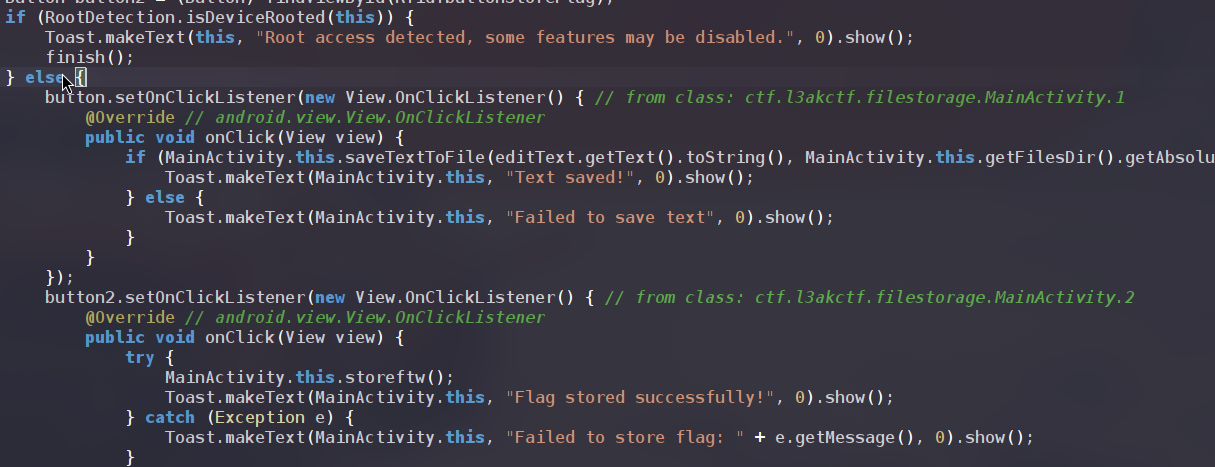

We see that a class RootDetection has a method isDeviceRooted() which if returned true, the app is terminated We can use Frida to bypass the check and open the open

Java.perform(() => {
    var Interceptor = Java.use("ctf.l3akctf.filestorage.RootDetection");
    Interceptor.isDeviceRooted.implementation = function(){
        return 0
    }

})

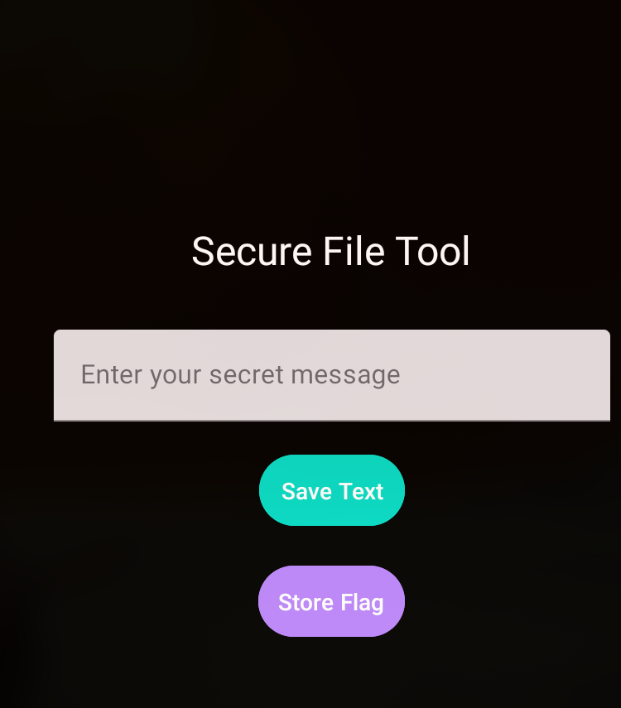

We can access the app now, From the decompiled code, the app is using a native lib libstoreftw.so
We can inspect that in Ghidra

          __s_00 = fopen((char *)__filename,"w");
          if (__s_00 != (FILE *)0x0) {
                    /* try { // try from 001624d8 to 001624e9 has its CatchHandler @ 001625c8 */
            uVar19 = __strlen_chk(pvVar6,0xffffffffffffffff);
            if (5 < uVar19) {
              fwrite("L3AK{",1,5,__s_00);
              fwrite((void *)((long)pvVar6 + 5),1,uVar19 - 5,__s_00);
            }
            fclose(__s_00);
          }
          unlink((char *)__filename);
          operator.delete[](pvVar6);
          if (bVar12 != 0) {
            operator.delete(pbVar7);
          }
          goto LAB_0016255b;
        }
      }
      operator.delete[](pvVar6);
    }

This function opens a file writes something starting with L3AK{ but the file is immediately deleted, We can hook the fwrite function and log the argument

Interceptor.attach(Module.findExportByName("libc.so", "fwrite"), {
        onEnter: function(args) {
            var size =args[1].toInt32()*args[2].toInt32();
            var flag = Memory.readUtf8String(args[0],size);
            console.log(flag)
        }
    });

But, when we click the Store Flag method, the app immediately crashes

  local_38 = *(long *)(in_FS_OFFSET + 0x28);
  iVar4 = (**(code **)(*param_1 + 0x6d8))(param_1,&DAT_001d79c0);
  if (iVar4 != 0) {
    _DAT_001d79c0 = 0;
  }
  DAT_001d79c8 = (**(code **)(*param_1 + 0xa8))(param_1);
  iVar4 = pthread_create(&DAT_001d79d0,(pthread_attr_t *)0x0,FUN_001627d0,(void *)0x0);
  if (iVar4 == 0) {
    pthread_detach(DAT_001d79d0);
    _DAT_001d79d8 = 1;
  }

At the starting of the native method, it starts a thread in which the function FUN_001627d0 will be running FUN_001627d0 is a anti Frida function which does various checking and terminates the app is Frida is found The bypass of this kind which specifically disables the thread making is available in github
Source: https://github.com/apkunpacker/AntiFrida_Bypass/blob/main/AntiAntiFrida3.js So, our finally our Frida script should:

1. Bypass the Java root detection
2. Disable the Frida detection (hook the function what creates the thread)
3. Hook fwrite and log its argument

// 1. Bypass the Java root detection
Java.perform(() => {
    var Interceptor0 = Java.use("ctf.l3akctf.filestorage.RootDetection");
    Interceptor0.isDeviceRooted.implementation = function(){
        return 0
    }
})

// 2. Disable the frida detection (hook the function what creates the thread)
Java.performNow(function() {
    try {
        let AlertDialog = Java.use("android.app.AlertDialog");
        AlertDialog.show.implementation = function() {
            console.warn("Hooked AlertDialog.show()");
            //stacktrace()
            this.show();
            this.setCancelable(true);
            this.setCanceledOnTouchOutside(true);
        }
    } catch (error) {
        console.error("Error :", error);
    }
})
function stacktrace() {
    Java.perform(function() {
        let AndroidLog = Java.use("android.util.Log");
        let ExceptionClass = Java.use("java.lang.Exception");
        console.warn(AndroidLog.getStackTraceString(ExceptionClass.$new()));
    });
}
try {
    var p_pthread_create = Module.findExportByName("libc.so", "pthread_create");
    var pthread_create = new NativeFunction(p_pthread_create, "int", ["pointer", "pointer", "pointer", "pointer"]);
    Interceptor.replace(p_pthread_create, new NativeCallback(function(ptr0, ptr1, ptr2, ptr3) {
        if (ptr1.isNull() && ptr3.isNull()) {
            console.log("Possible thread creation for checking. Disabling it");
            return -1;
        } else {
            return pthread_create(ptr0, ptr1, ptr2, ptr3);
        }
    }, "int", ["pointer", "pointer", "pointer", "pointer"]));
} catch (error) {
    console.log("Error", error)
}

// 3. Hook `fwrite` and log its argument
Interceptor.attach(Module.findExportByName("libc.so", "fwrite"), {
        onEnter: function(args) {
            var size = args[1].toInt32() * args[2].toInt32();
            var flag = Memory.readUtf8String(args[0], size);
            console.log(content)
        }
    });

We can load this script and click on the store flag button

• FLAGL3AK{2fca62dde10486253541959b40635826}
