Firmware - Cyberchaze CTF Writeup
Walkthrough for the Firmware Android reverse engineering challenge from Cyberchaze CTF.
Challenge Info
| Field | Details |
|---|---|
| CTF | Cyberchaze CTF |
| Challenge | Firmware |
| Category | Android / Reverse Engineering |
Description
Within a plain mobile firmware update, a secret quietly lies hidden. Overlapping memory writes whisper hints of a concealed message—if you’re willing to look beyond the surface.
Solution
This challenge’s description strongly hints that the flag is hidden within a firmware update In APKs, these firmware are usually found in res/rax or assets We can check that using Jadx.

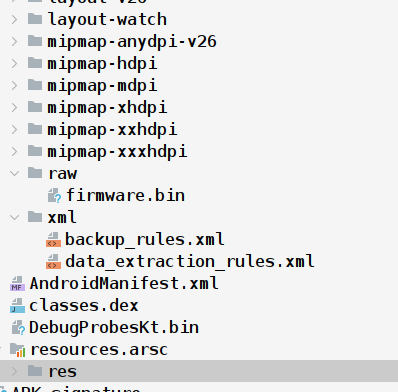

There is a firmware.bin file in res/raw, we can right click on it to export it from Jadx We can check the file type : file firmware.bin,
It is a 7zip archieve, we can use 7z x firmware.bin to extract..but it requires a password to do so, That password is probably in the APK itself When we inspeact strings.xml,
There is a string with a name useful and value nullc0n_2025, which was indeed the password After extracting,
1
2
3
4
5
6
muahahaha...~/Documents> file firmware.bin
firmware.bin: ELF 64-bit LSB pie executable, x86-64, version 1 (SYSV), dynamically linked, interpreter /lib64/ld-linux-x86-64.so.2, BuildID[sha1]=48b35161a51a8d49c58438d3a98f7a14baa8077c, for GNU/Linux 3.2.0, not stripped
muahahaha...~/Documents> chmod 777 firmware.bin
muahahaha...~/Documents> ./firmware.bin
Welcome to the Flag Challenge!
Can you find the hidden flag?
It was an executale file, we can try running strings in it
Flag
1
FLAG:cyberchaze{R0n_1s_H1gh}
